Bosch launches BMI260 family: new generation of IMUs optimized for smartphone applications

Bosch Sensortec launches the BMI260 family, a new generation of high-performance MEMS Inertial Measurement Units (IMUs) targeted at smartphone applications. The family comprises of three sensors – BMI260, BMI261 and BMI263 – which deliver an extensive range of features, including full Android compliance, an I3C interface, and support for sensor synchronization.

The new IMUs are equipped with a high-performance accelerometer and provide highly accurate step counting, motion detection and precise data to support indoor SLAM (Simultaneous Localization and Mapping). In addition to increased performance, the BMI260 family offers significantly reduced power consumption for extended smartphone battery life. Thanks to low-latency, OIS (optical image stabilization) and EIS (electronic image stabilization) support, the BMI260 family enables much sharper pictures and ultra-smooth video stabilization.

"Our next-generation BMI260 family of IMUs builds upon the rock-solid foundation put in place by the very successful BMI160," says Dr. Stefan Finkbeiner, CEO of Bosch Sensortec. "These new IMUs deliver enhanced accelerometer performance, an extensive range of powerful features and interfaces, and, importantly, Component Retrimming (CRT) for motionless gyroscope self-calibration. End users can now look forward to many new features and a much faster, smoother, and essentially flawless experience.”

Broad range of features

The BMI260 is the base variant, combining Bosch Sensortec’s high-end accelerometer performance with Bosch’s automotive-proven gyroscope technology. Its high robustness against temperature fluctuations and PCB stress enables extremely precise acceleration sensing. The BMI261 variant is fully Android-compliant and specifically optimized for always-on smartphone gesture and activity recognition. The BMI263 is Bosch Sensortec’s first product to be fully compliant with the latest I3C standard as defined by MIPI and supports both asynchronous and synchronous timing control. Each device includes a primary and secondary interface that can be configured independently in I2C or SPI. This enables dual SPI configuration, camera modules or auxiliary sensor connections, for example a magnetometer. Finally, the entire BMI260 family enables extended support for data synchronization.

Built-in gyroscope self-calibration

Each of the new IMU devices includes the industry’s first motionless Component Retrimming (CRT) feature for built-in gyroscope self-calibration. This eliminates the need to calibrate the sensitivity of the MEMS gyroscope using a rotation stimulus. This plug-and-play feature promises to significantly accelerate testing and manufacturing processes to further reduce cost and time-to-market for device makers.

Enabling sharp pictures and videos with OIS/EIS

The new family of IMUs boasts powerful OIS and EIS features. Excellent, low latency (e.g. Google Daydream View compliant), minimal group delays (max. about 600 μs) and high-precision time stamps (accuracy about 40 μs) substantially improve photo and video quality for end users. Dual SPI interfaces enable a single IMU to serve two SPI-based modules, supporting stereo or 3D camera operation. Using the BMI260 family on the mainboard enables congruent HMI and OIS functions, such as stabilized panorama photo panning and action video tagging.

Ultra-low power consumption

Power consumption is kept very low, helping to noticeably prolong smartphone battery life and reduce charging cycles for end users. At a full output data rate (ODR) of up to 6.4 kHz, the typical current draw for both the accelerometer and gyroscope is kept at a level of 700 μA. By enabling high output data rates with low current consumption, smartphone manufacturers can avoid compromising their designs with unpleasant aliasing effects – an effect that causes different signals to become indistinguishable when sampled at lower ODRs.

The BMI260 IMU family provides an intelligent power management system enabling all always-on features to run inside the ultra-low power domain of the IMU. Therefore, the host application processor has to wake up only on rare, dedicated occasions, enabling a maximized idle period for the main processor. For example, the system can run reliable gesture and activity recognition features at power draws of merely 30 μA.

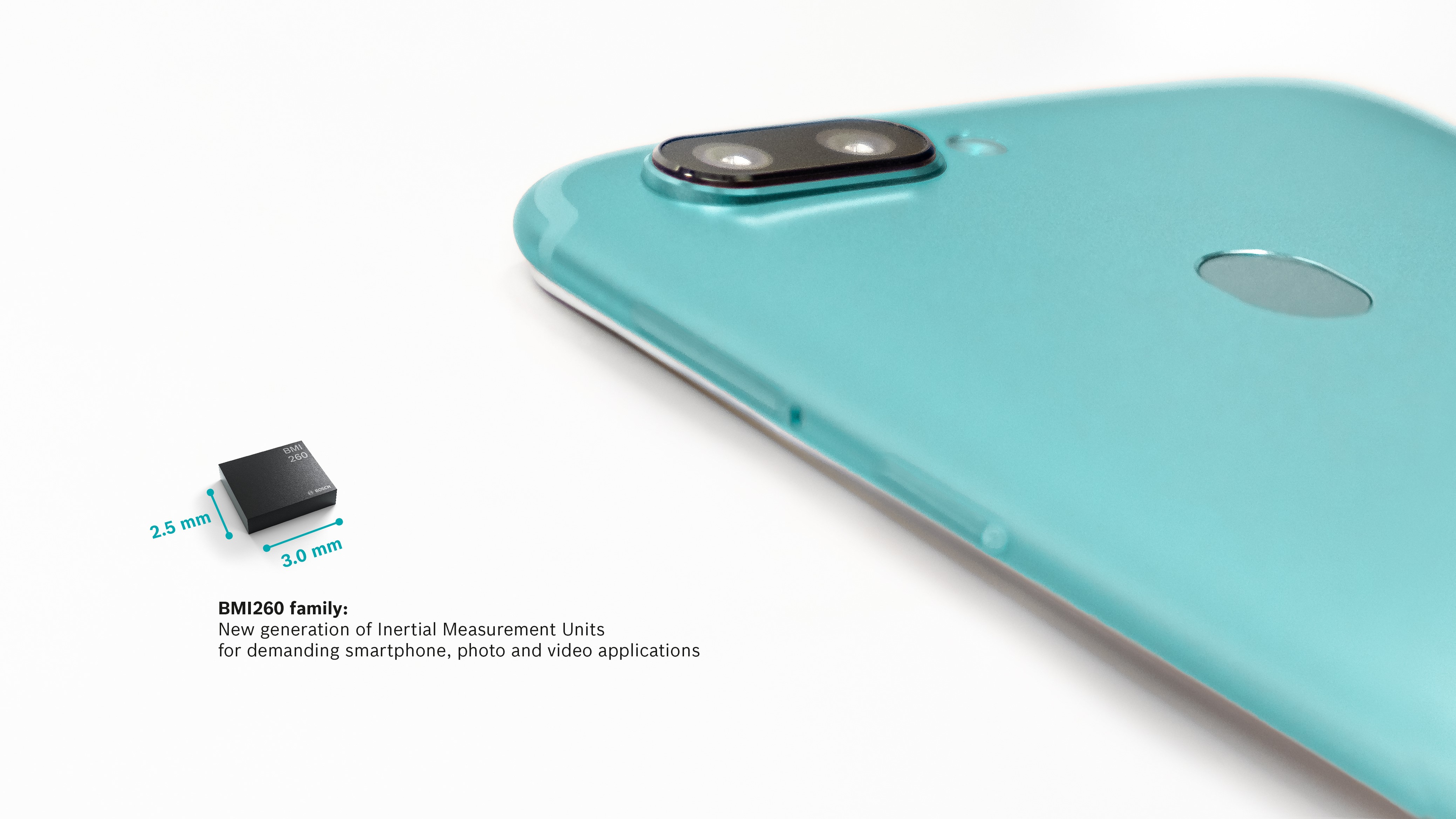

The new BMI260 family offers a compact package measuring only 2.5 x 3.0 x 0.8 mm3. The IMUs are pin-to-pin compatible with its predecessor BMI160.

BMI260 and BMI261 are available for high-volume production. Samples of BMI263 are now available on request.
